E-commerce

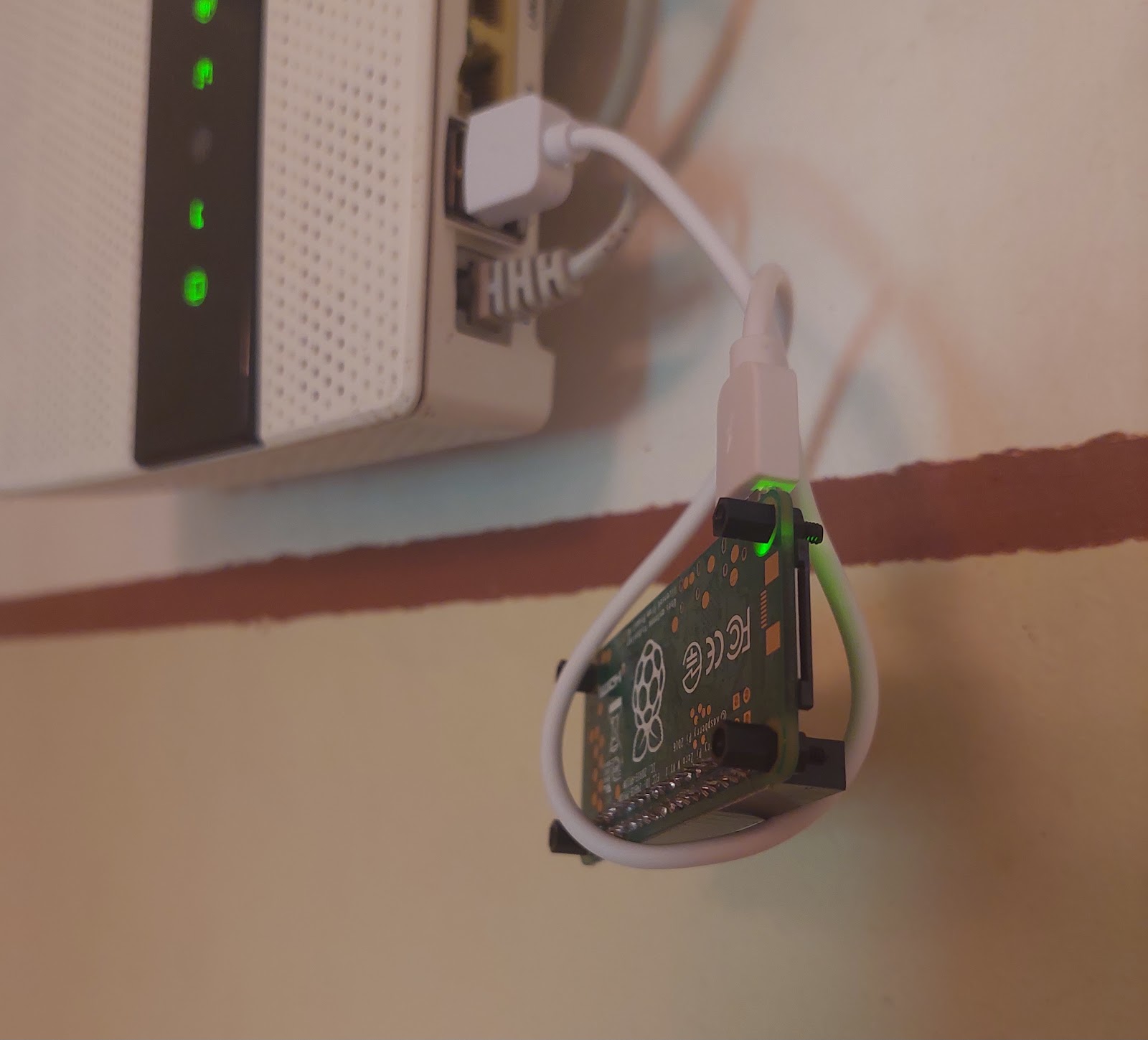

the webshop server: a Raspberry Pi Zero, powered on, cabled to the router

A minimal e-commerce platform — catalog, coupons, orders, digital delivery — running on a Raspberry Pi Zero, the original one, armv6, 512 MB. It serves a community webshop; the only recurring bill is the domain, about €10 a year. The tunnel, the SSL and the caching are Cloudflare's free tier. The box itself was already in a drawer: its previous job was motor control — six-step BLDC commutation straight from the GPIO pins, stepper drivers, servo positioning.

Architecture

  • Host: Raspberry Pi Zero (armv6l). No public IP, no open ports.
  • A Cloudflare named tunnel connects outbound to the edge; SSL is terminated at Cloudflare. The server is never reachable directly.
  • Node.js serves the app. The order database is a JSON file. Purchased files are delivered from Google Drive through a view-only service account.
  • Cloudflare cache rules keep the hot paths at the edge — /, /preview/*, /api/catalog/*, /view/* — so a single-core 512 MB box can survive a catalog browse without touching its own SD card.

The armv6 problem

Two packages made this harder than it should be:

  • Node.js on 32-bit ARM stops at 20.19, with no upgrade path. The app wants ≥18, so it fits — but that ceiling is why this shop will eventually move to a 64-bit board.
  • cloudflared has no armv6 build in the default repositories. The arm package from pkg.cloudflare.com is built for GOARM=5 and runs on armv6l:
LATEST=$(curl -fsSL https://pkg.cloudflare.com/dists/any/main/binary-arm/Packages \
  | awk '/^Version:/{print $2}' | sort -V | tail -1)
curl -fsSL -o cloudflared_arm.deb \
  "https://pkg.cloudflare.com/pool/main/c/cloudflared/cloudflared_${LATEST}_arm.deb"
dpkg-deb -x cloudflared_arm.deb /tmp/cf-extract
install -m 0755 /tmp/cf-extract/usr/bin/cloudflared /usr/local/bin/cloudflared

Tunnel setup: cloudflared tunnel login, cloudflared tunnel create <name>, then install the systemd service with the token from the Cloudflare dashboard (Tunnels tab). The token is a credential — it belongs in the service unit, not in notes or chat windows. At the edge, enable Always Use HTTPS.

Deploy

Code ships by rsync from a build machine; the app runs under systemd from /opt/shop:

  • Code is root-owned and read-only: app.mjs, lib/, public/, package.json.
  • A merchant service user — no login shell, no home — owns nothing but runtime state.
  • Config is 0640 root:merchant (.env, the service-account key). data/, log/, cache/ are merchant-owned, 0770. The app can write state; it cannot rewrite code.

Orders

Orders land in a JSON file. Everything the shop needs is one jq call:

# files of one order
jq -r --arg o "$ORDER" '.[$o].items[].fileName' orders.json

# all orders of one e-mail
jq -r --arg e "$EMAIL" '.[] | select(.email==$e) | .order_reference' orders.json

# all unique e-mails
jq -r '[.[].email] | unique[]' orders.json

Digital goods from Google Drive

Delivery works through the Google Drive API: enable it in the console, create a service account per shop subdomain, give it view permission, drop the key file into the shop config at 0640.

The same skeleton generalizes to any small service — one system user per subdomain, same directory layout, same permissions:

USER="example"
HOME_DIR="/opt/${USER}"
groupadd -r "${USER}"
useradd -r -M -d "${HOME_DIR}" -s /usr/sbin/nologin -g "${USER}" "${USER}"
mkdir -p "${HOME_DIR}"/{config,data,log}
chown root:"${USER}" "${HOME_DIR}"/config; chmod 750 "${HOME_DIR}"/config
chown "${USER}":"${USER}" "${HOME_DIR}"/data;  chmod 750 "${HOME_DIR}"/data
chown "${USER}":"${USER}" "${HOME_DIR}"/log;   chmod 750 "${HOME_DIR}"/log

New subdomain, same skeleton, ten minutes.

If you attempt any of this, it is at your own risk.
